12U 19" 450mm Wall Mount Aptus Series Rack Cabinet

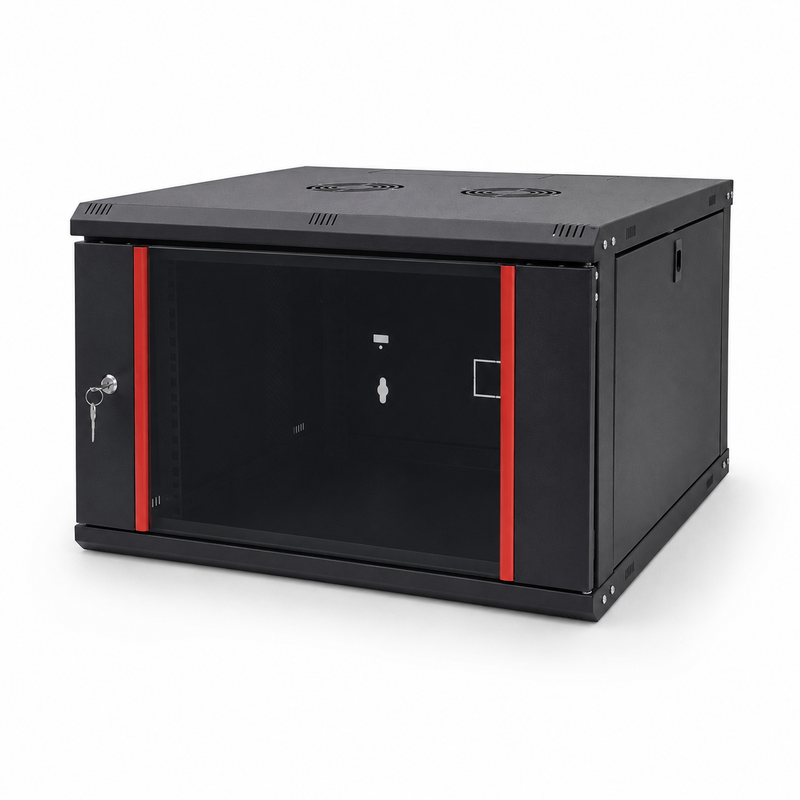

VATPAN Aptus Series 12U 19” 450mm Wall Mount Rack Cabinet
VATPAN Aptus Series 12U 19” 450mm Wall Mount Rack Cabinet is a compact wall-mount cabinet for switches, patch panels, modems, routers, DVR/NVR units, PDUs and small UPS systems — keeping them secure, tidy and professionally installed.
A lockable tempered-glass front door, adjustable 19” rack rails, side panels that open and a fan-ready top panel make it a practical fit for offices, retail sites, CCTV systems, home networks and low-voltage projects.
Product Highlights
-
12U 19” standard rack equipment
-
450 mm depth, sized for compact network installs
-

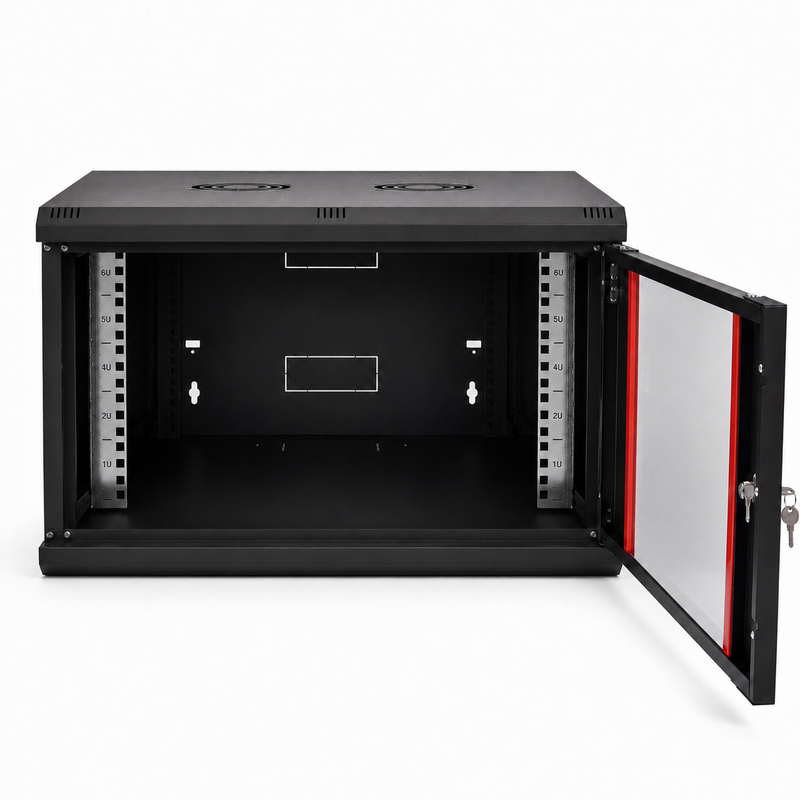

Lockable 4 mm tempered-glass front door
-

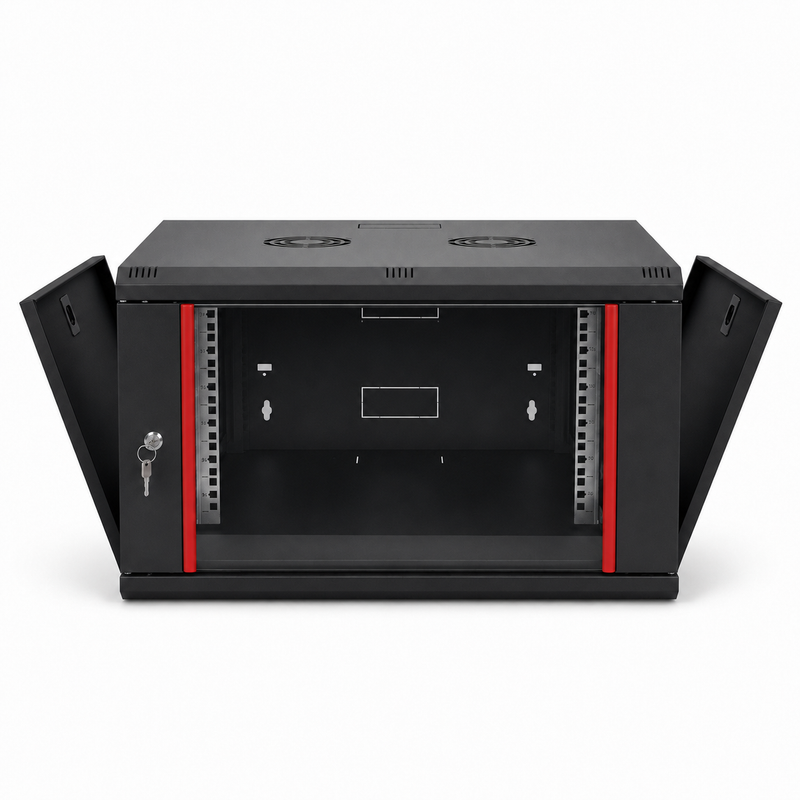

Side panels that open for service access
-
Adjustable galvanized 19” mounting rails
-
Cable entry at the bottom, top and rear
-

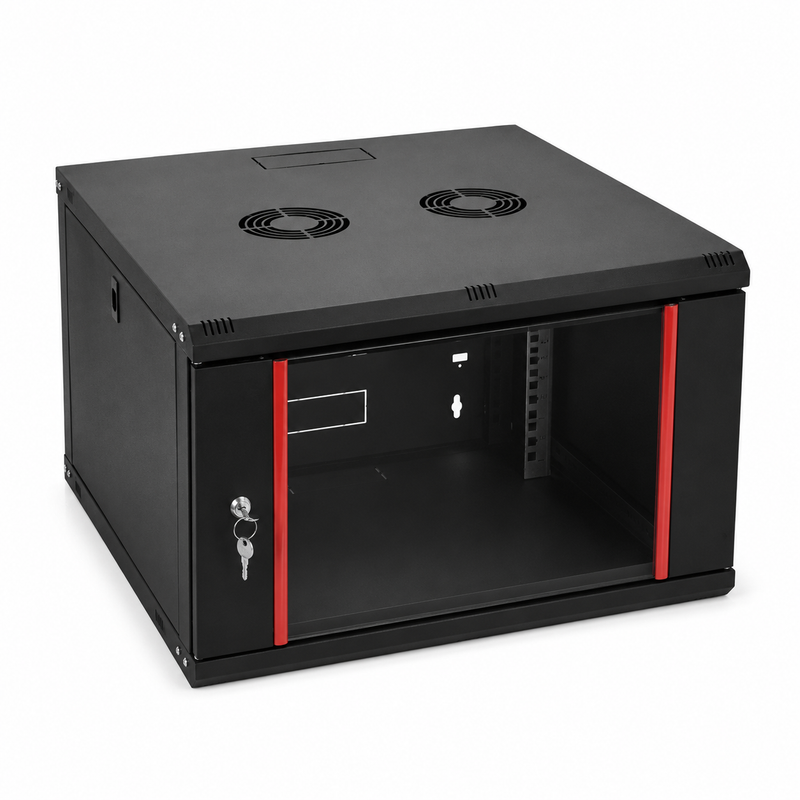

Top panel prepared for an optional 2-fan module
-
RAL 9005 black powder-coated body
-
Wall-mount network cabinet
12U 19” 450mm Wall Mount Rack Cabinet — overview
The 12U 19” 450mm wall-mount rack cabinet is a metal cabinet that keeps standard 19-inch network and low-voltage equipment organized, secure and ventilated.
“12U” is the vertical mounting capacity, “19 inch” is the international rack standard, and “450 mm” is the cabinet depth. Those dimensions suit compact equipment such as switches, patch panels, modems, routers, firewalls, DVR/NVR units, PDUs and small UPS systems.
Note: 450 mm cabinets need room for cable termination, rear clearance and airflow. Equipment depth should generally stay within the 300–350 mm range.
Typical use
The VATPAN 12U 19” 450mm Wall Mount Rack Cabinet gathers network equipment in one lockable cabinet instead of leaving it exposed or unmanaged. That cuts cable clutter, limits unauthorized access, simplifies maintenance and gives the install a professional finish.
Used to organize network equipment in offices, shops, CCTV systems, home networks, schools, hotels and technical rooms.
Applications
-
Office networks
-
Retail and shop infrastructure
-
CCTV security systems
-
DVR / NVR recorder installs
-
Home and smart-home networks
-
Hotel, school and branch networks
-
Telecom and low-voltage work
-
Fiber optic termination points
-
Small server / network rooms
-
Warehouses, showrooms and technical rooms
Compatible equipment
This cabinet is suitable for:
-
19” switch
-
Patch panel
-
Modem / router
-
Firewall
-
PoE switch
-
DVR / NVR camera recorder
-
PDU
-
Small UPS
-
Fiber optic termination box
-
Media converter
-
Telephone junction box
-
Cable-management accessories
Note: 450 mm depth is for network, security, telecom and low-voltage equipment, not full-depth servers.
Specifications
General
| Feature | Value |
|---|---|
| Product type | Wall Mount Rack Cabinet |
| Series | VATPAN Aptus Series |
| Rack standard | 19” |
| Capacity | 12U |
Dimensions
| Feature | Value |
|---|---|
| Width | 550 mm |
| Height | 615 mm |
| Depth | 450 mm |
Construction
| Feature | Value |
|---|---|
| Front door | 4 mm tempered glass, lockable |
| Side panels | Openable |
| Rack rails | Adjustable 19” galvanized rails |
| Material | Galvanized / DKP sheet steel |
| Colour | RAL 9005 black |
Ventilation and cable entry
| Feature | Value |
|---|---|
| Ventilation | Passive ventilation + fan mounting area |
| Cable entry | Bottom, top and rear cable entries |
Use
| Feature | Value |
|---|---|
| Environment | Indoor |
| Mounting | Wall mount |
Installation and maintenance

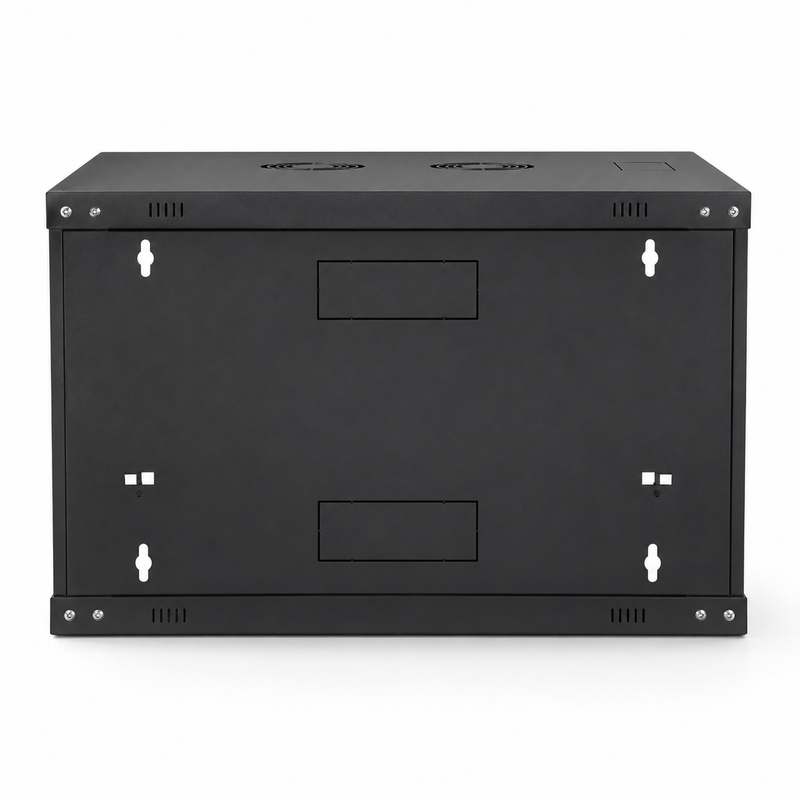

Mount the cabinet on a solid wall with suitable fixings. Check that the wall can carry the total weight of the installed equipment.
Do not pack cables so tightly that they block airflow. Place heavier equipment as low as possible. Clean the surface with a dry, soft cloth. Do not use chemical or abrasive cleaners.
